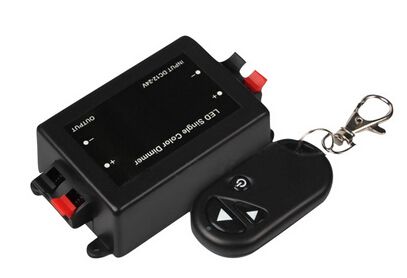

	Product Name RF led single color dimmer Model No. TL-RF-T1

DETAILS

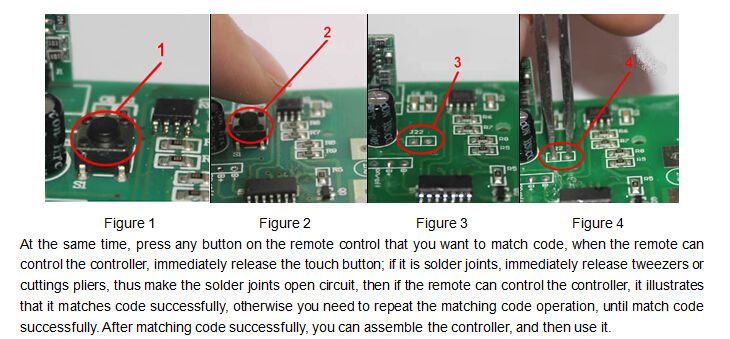

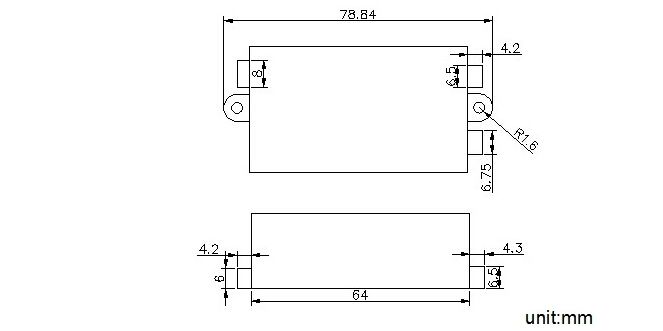

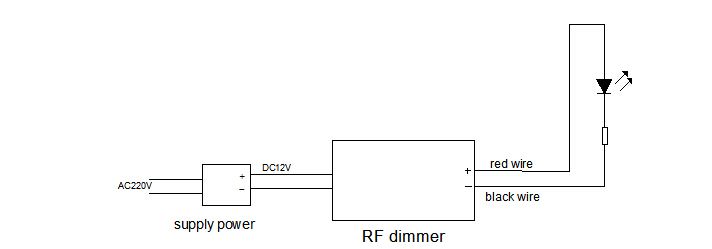

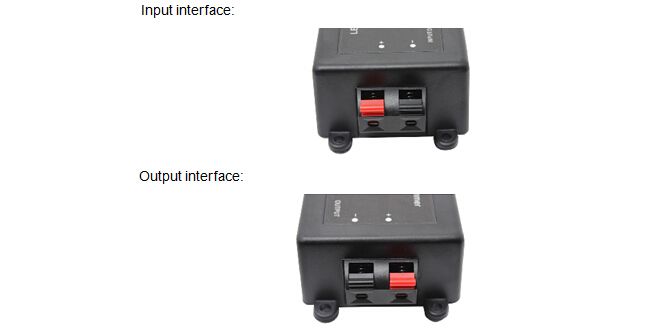

RF led single color dimmer Summary RF dimmer is a controller that can adjust brightness infinitely,its control mode is wireless control, you could adjust light to the appropriate lighting brightness in accordance with your actual need. Also with matching code function, users can replace the remote control by themselves (to prevent users can not operate because of  damage or loss of the remote control).  Technical parameters  ● working temperature: -20-60 ℃ ● supply voltage: DC5V，12-24V < optional > ( supply voltage should be marked on order ) ● output: 1 channel ● net weight: 78g ● gross weight: 103g ● external dimension: L110 Χ W56 Χ H34 mm ● packing size: L122 Χ W85 Χ H42 mm ● output current: <8A ● output power: 5V<40W, 12V<96W, 24V<192W External Dimension Interface Specifications Opertating Instructions of Matching code Unscrew the screws at the back of the controller, open the shell, pull out the PCB, connect with load light, and then power wire, after ensure short circuit can not occur between connecting wire, turn on the power, find the touch button on the PCB (figure 1), press the button (figure 2), some versions have not button, just two solder joints (figure 3), you can make the two solder joints short circuit with electrical conductive tweezers or cutting pliers (figure 4). Direction for use Typical Applications
