	Product Name Waterproof RF 8 Keys RGB controller Model No. TL-RF-WP

DETAILS

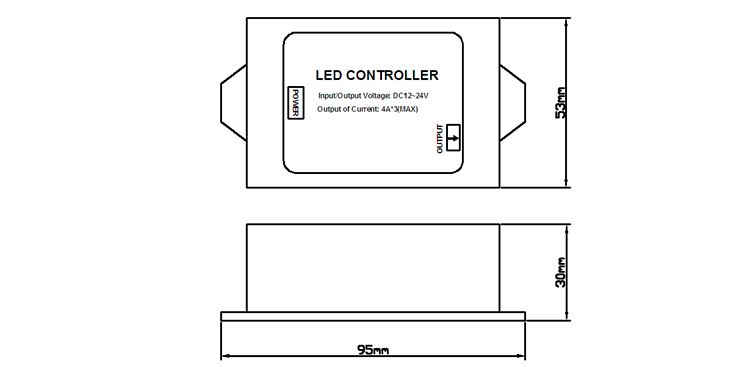

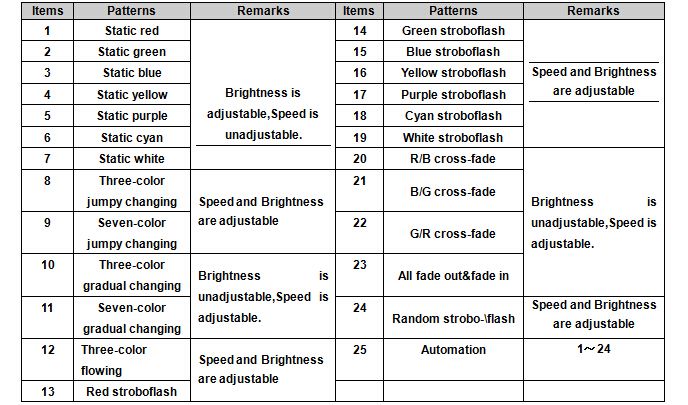

Waterproof  RF 8 Keys RGB controller Product Description: Plastic RF 8 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.The controller section with waterproof, waterproof rating of IP67. Technical Parameters: ● Working temperature: -20-70 ℃ ● Supply voltage: DC12V ~ 24V ● Output: 3 channels ● Connecting mode: common anode ● Controller Size: L95 × W53 × H30mm ● Weight: 115g ● Static power consumption: <1W ● Output current: <4A/CH ● Output power: 12V: <144W, 24V: <288W External dimension:    （Controller size）
