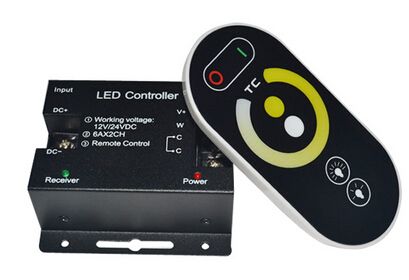

 Touch color temperature controller
Summary
This product is one of our newest intelligent controller by our company, adopting the newest capacitance touch and wireless technology. With elegant color wheel and full touch panel under Humanized design for easy installation and operation. The steady wireless control mode technology makes the remote and free direction control come true by finger touch the corresponding button softly. Meanwhile, the RF remote controller can control the color, mode and change speed with light-dimmer, turning on, turning off and pause in long distance, high sensitivity, strong power-drive ability, steady and reliable performance, This Controller can be matched with all kinds of color temperature adjustable lights, such as color temperature adjustable LED rigid light bars, flexible strip, panel lights, modules etc.
Features
1.Capacitance and wireless touch technology, no mechanical wear, overcoming the lifespan problems caused by Physical buttons.
2.Visible color wheel, touched by finger, then What you see is What you get.
3.Auto adaptation of 12-24V DC working voltage and with input polarity protection function.
4. The newest PWM control technology, delicate light performance, no flicker.
5.High power dimmer control MOS tube with stable and reliable performance, strong.power-drive ability with max. 12A of 2 channels.
6.Wireless RF control, free direction and long distance, more than 20 m.
7. Multi-type memory functions for color and brightness.
8 .Smart appearance, standard input and output port, easy installation and high cost performance.
Applications
1.Construction decoration: commercial buildings, airports or subways.
2.Indoor decoration: hotels, shopping malls, squares, restaurants, bars, houses.
3.Outdoor decoration: advertising boards, parks, bridges, roads and overpasses, scenic spots.
4.Others: d ecorating for motor vehicles, the places needing RGB lights.

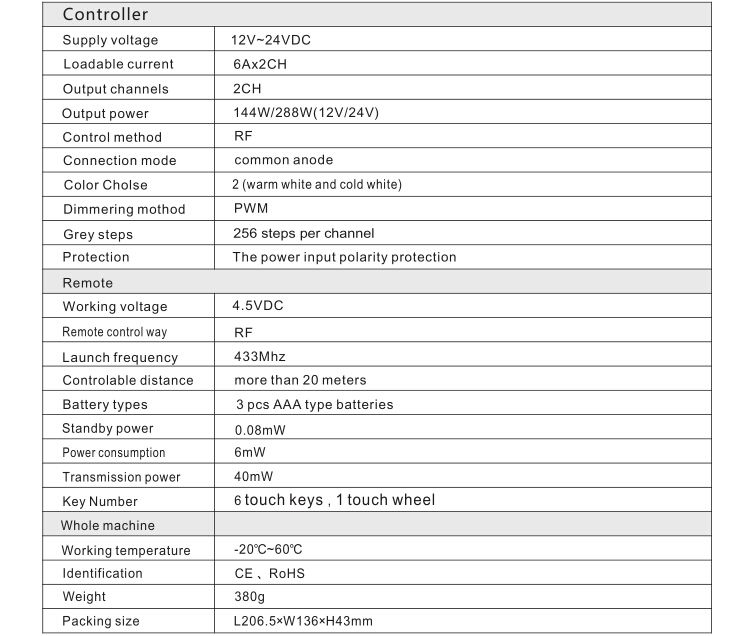

Technical parameters

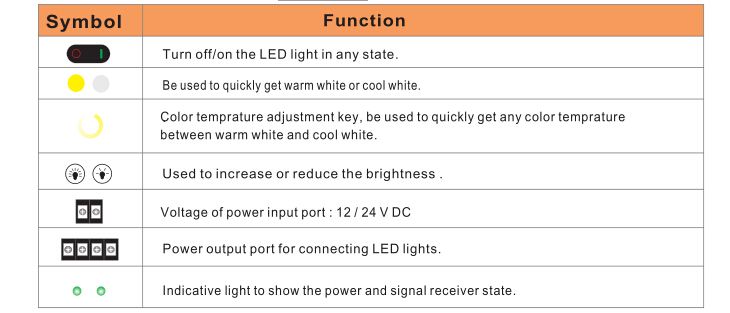

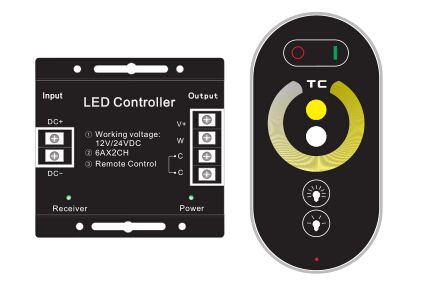

Panel and interface specifications
Panel and interface specifications (continuous)
Remote controller battery installation
This remoter is used 3 pcs AAA batteries, each voltage is 1.5V. Open the cover of the battery; load 3 pcs AAA batteries correctly as per the positive and negative instructions in the battery pack. If the indicator lights on the remote controller flash regularly without touch, please note the battery should be changed.
The remote of low power consumption and awakening
When the user does not touch the remote controller for 20 seconds, the remote controller will automatically enter the lower power sleep mode to save standby power consumption and extend battery life. When the user needs to re-use reoperatethe controller, only touch any key on the touch panel (not the color wheel) to wake up the remote controller for normal use.
The wiring and the typical product apply diagram

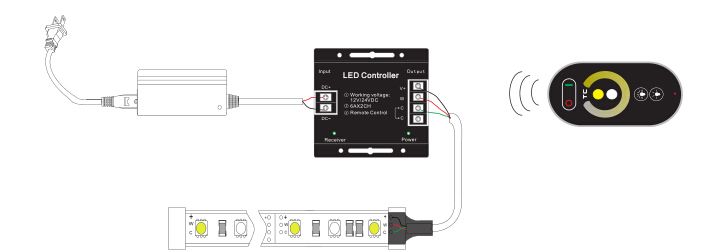

The diagram for showing how to connect( take strip for example) color temperature :

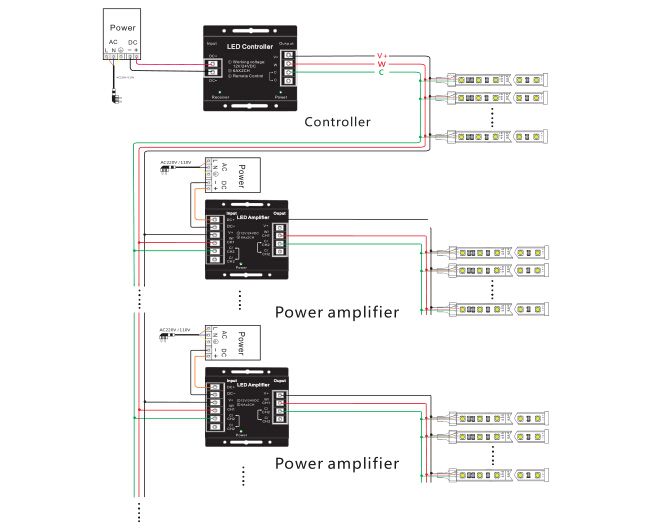

Power amplifier figure
1. When the controller power is not enough, please adopt our constant voltage LED power amplifier.The specifi-
2. The diagram for showing how to connect controllers, amplifiers and LED lights( take CT strip for example) : cations can be obtained by contacting our sales team.

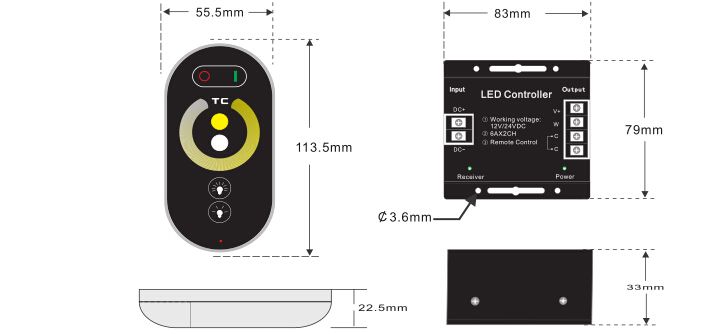

Product dimensions
Packing detail

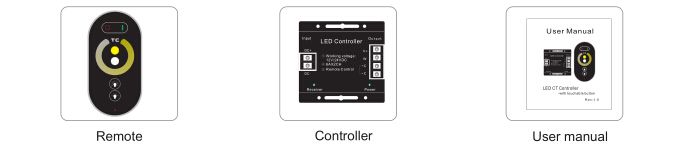

Product Accessories
After-sales service
1.The customers enjoy lifelong technical support for our products.
● Free Warranty: The customers enjoy free maintainance or replacement for quality problems within one year upon date of purchasing.
● Paid warranty: If the free warranty time is overdue, We will charge certain cost of raw materials for repair or maintainance.
2. Following cases are excluded free warranty terms:
● Any defects caused by wrong operations.
● Ay damages caused by unauthorized removal,maintenance,modifying circuit, incorrect connec tions and replacing chips.
● Any damages due to transportation, breaking, flooding water after the purchase.
● Any damages caused by earthquake, fire, flood, lightning strike etc force majeure of natural disasters.
● Any damages caused by negligence, inappropriate storing at high temperature and humidity or environ-ment near harmful chemicals.
3. Our company would take up the biggest responsibility to replace the same type and quantity accordingly.
4. The cilents please inform suppliers the faulty phenomena,using environment etc. for speeding up the maintainace process.
|
