 High Speed Large Current Power Amplifier
Summary

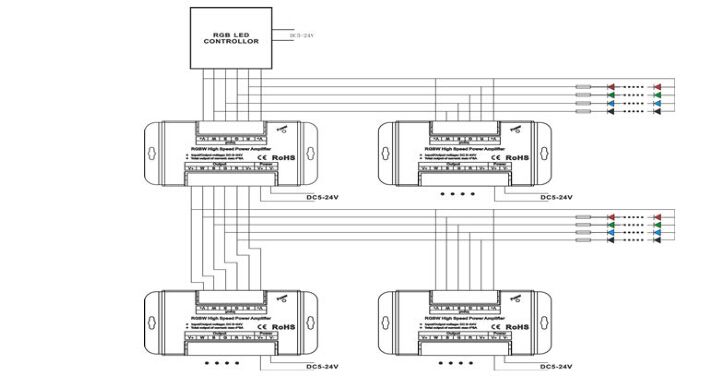

High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company's products or any other company's products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.
Technical parameters
Working temperature: -20-60 ℃
Working voltage: DC5V-24V
Signal voltage: DC5V-24V
Input signal: PWM dimming signal
Dimming range: 0.1%-100%
Net weight: 270g
Gross weight: 310g
External dimension: L147mm*W70mm*H34mm
Packing size: L152* W75* H75mm
Connect terminal: screw connect mode, terminal caliber 7mm
Connect mode: common anode
Output current: <32A

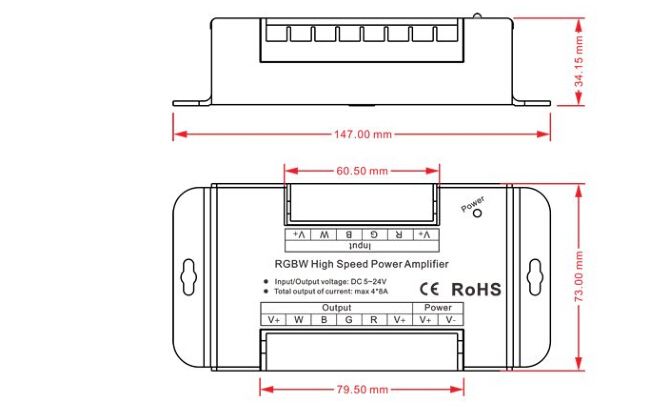

External Dimension:
1.Construction decoration: commercial buildings, airports or subways.
2.Indoor decoration: hotels, shopping malls, squares, restaurants, bars, houses.
3.Outdoor decoration: advertising boards, parks, bridges, roads and overpasses, scenic spots.
4.Others: d ecorating for motor vehicles, the places needing RGB lights.
Technical parameters

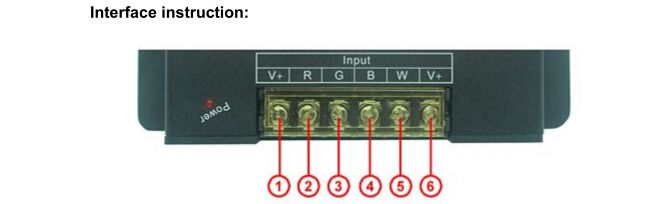

RGBW signal control port:
○1 : Common anode public pole
○2 : R channel input signal cathode
○3 : G channel input signal cathode
○4 : B channel input signal cathode
○5 : W channel input signal cathode
○6 : Common anode public pole

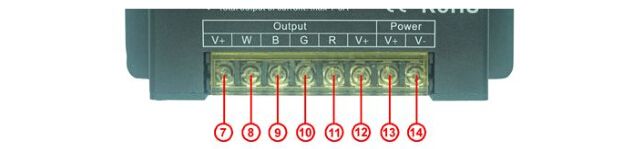

Power and load output port:
○7 : Load output common anode public pole
○8 :W channel load output cathode
○9 :B channel load output cathode
○10 :G channel load output cathode
○11 : R channel load output cathode
○12 : Load output common anode public pole
○13 : Power supply input voltage anode
○14 : Power supply input voltage cathode
