	Product Name IR 40 keys RGBW LED Controller Model No. TL-IR40-RGBW

DETAILS

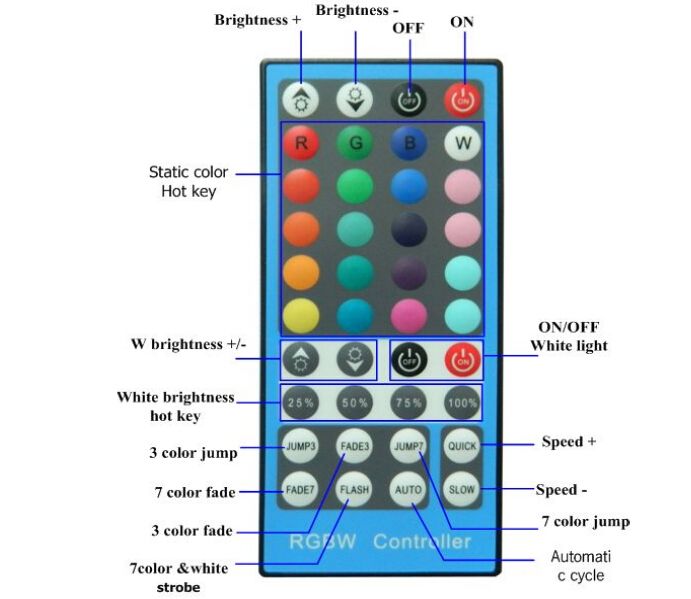

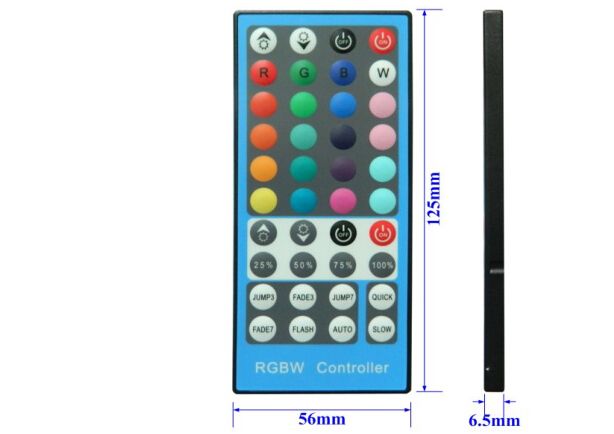

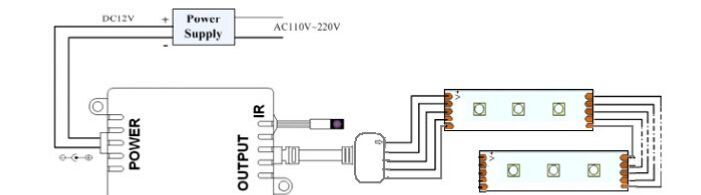

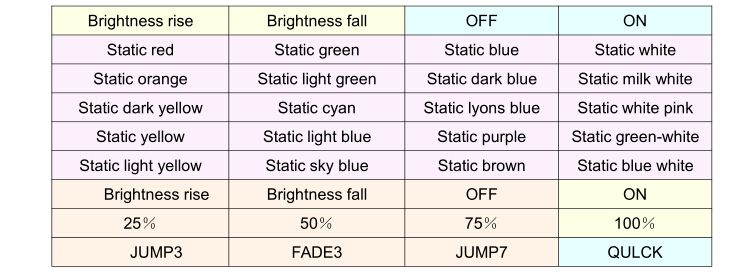

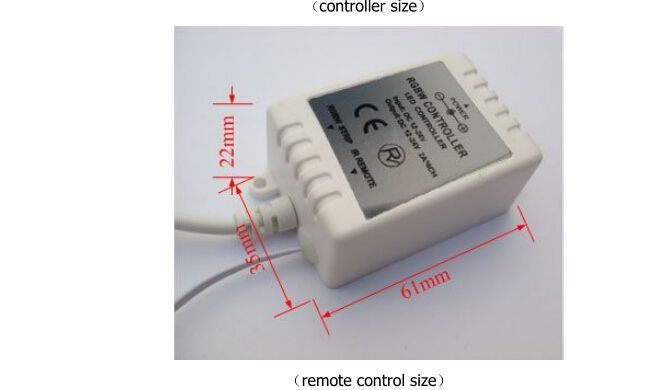

IR 40 keys RGBW LED Controller Summary 40-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices, customize any color and various dynamic changes in lighting effects through infrared remote control. Features 1 Small size,light； 2 There are 40 keys on the remote control , each function are clear on the remote,simple to use,and the remote are universal. 3 RGB and W two parts are separate,can be controlled each part alone to meet customer’s different requirement. Technical Parameters: Controller ： Working temperature：-20-60℃ Input voltage：DC5V,DC 12-24V Connection mode：Common anode Output current：<2A Static power consumption：<1W Controller size：L61 Χ W35 Χ H22 mm Packing size：L136*W48*H59 mm Net weight：80g Gross weight：90g Output current：5V<40W，12V<96W, 24V<192W Remote  control ： Working temperature：-20-60℃ power supply mode：button battery supply voltage：3V Standby current：0.1uA Standby power：0.3uW External dimension: Interface Specifications: Direction for use: ● Connect the load cord first, and then connect the power cord; Before power on please ensure no short circuit between the cables; ● Used the 40 key infrared remote control, the key function are as follows:  T he keys function are as below： Supplement ： This RGBW Controller is divided into RGB and W two parts, it can be Turn on/OFF RGB Part and W part independently , and can controlled their brightness and their color independently.such as,when turn on RGB part, it can change RGB part's color and brightness;and can turn on W parts at the same time ,and can turn on/OFF W part or adjust its brightness .when at 3/7 color Fade model,can adjust their changing speed;when at 3/7 Color Jump mode,can adjust their brightness and adjust changing speed. When the user does not touch the remote controller for 20 seconds, the remote controller will automatically enter the lower power sleep mode to save standby power consumption and extend battery life. When the user needs to re-use reoperatethe controller, only touch any key on the touch panel (not the color wheel) to wake up the remote controller for normal use. Typical Applications The wiring and the typical product apply diagram The diagram for showing how to connect( take RGB strip for example): 1、This products Input voltage is DC12V,other input voltage are not allowed. 2、Lead wire should be connected correctly,according to the wire color and the connecting diagram offers. 3、Overload are prohibited.
