 RF RGBW Panel controller
Product Description
RGBW panel controller is our developed a new type of high-end controller, using 36 key panel design, and the 40-key radio button on the remote, look beautiful and stylish. It is mainly used to control a variety of led lamps as the light source, such as: point light source, LED strip light, panel light, etc.; easy wiring, simple to use and so on.
Technical Parameters
● Working temperature: -20-60 ℃
Direction for use

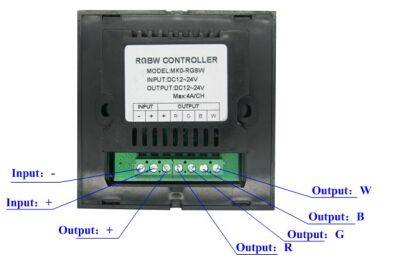

1, according to the interface specification, connect the load line, connect the power cord; before power to ensure that no short circuit between the cable.

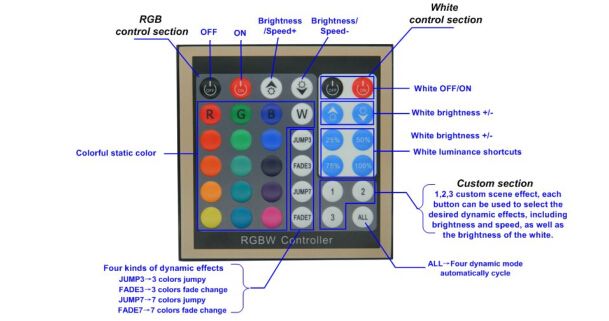

2, using the panel buttons are described as follows: (RGB control section, the control section, and custom white
1.RGB Controlled section:
This section is only for RGB three-way button control, including the power button, off key, brightness / speed increase, brightness /deceleration, static color choices, select the dynamic effects and dynamic automatic cycle. Where static color adjustable brightness, dynamic effects speed is adjustable.All key is four dynamic effects with auto cycling
2.White light controlled section:
This section is only for white control buttons, including a key to open, turn off the key, brightness increase, decrease brightness, brightness, quick selection key. In any scenario, the white part can be individually controlled.
3.DIY Section
1,2,3 keys for a custom scene, each button can own static or dynamic color desired effect, and white to choose. Where static color and white light adjustable, adjustable speed dynamic effects. First select the desired effect during operation, and then press a number key, then the output effect flashes 4, the
representatives set up a successful and self-storage.

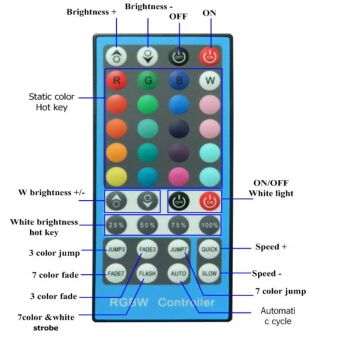

3、Direction use of RF remote control:

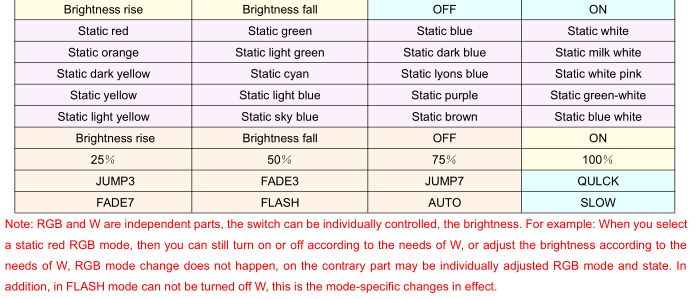

● The keys function are as below：

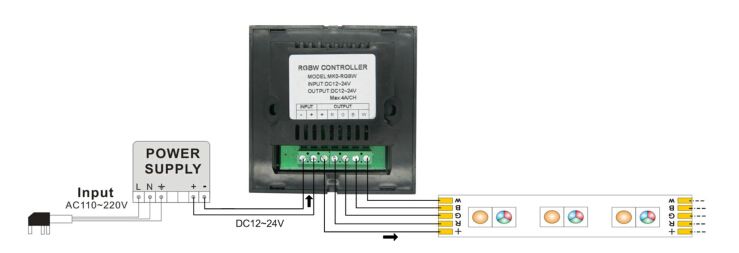

Typical Application
|
